saa-本地MCP客户端和服务端调用

#MCP#spring ai alibaba

一、说明

本章节主要实现两个功能：一个是本地MCP服务搭建，二个是本地MCP客户端搭建并调用本地MCP服务，实现本地MCP客户端和服务的调用，同时对比调用本地MCP服务和未调用本地MCP服务之间的差异。

二、代码

1. 父工程pom文件

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <groupId>com.saa</groupId>
    <artifactId>saa-parent</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>saa-parent</name>
    <description>saa-parent</description>
    <packaging>pom</packaging>
    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
        <maven.compiler.source>17</maven.compiler.source>
        <maven.compiler.target>17</maven.compiler.target>
        <java.version>17</java.version>
        <spring-ai.version>1.0.0</spring-ai.version>
        <spring-ai-alibaba.version>1.0.0.2</spring-ai-alibaba.version>
        <spring-boot.version>3.4.5</spring-boot.version>
    </properties>

    <modules>
        <module>saa-helloworld</module>
        <module>saa-ollma</module>
        <module>saa-streaming</module>
        <module>saa-prompt</module>
        <module>saa-prompt-template</module>
        <module>saa-persistent</module>
        <module>saa-text2image</module>
        <module>saa-text2voice</module>
        <module>saa-embed2vector</module>
        <module>saa-rag4ops</module>
        <module>saa-toolCalling</module>
        <module>saa-localMcpServer</module>
        <module>saa-localMcpClient</module>
    </modules>

    <dependencyManagement>
        <dependencies>
            <!-- Spring Boot -->
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-dependencies</artifactId>
                <version>${spring-boot.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <!-- Spring AI Alibaba -->
            <dependency>
                <groupId>com.alibaba.cloud.ai</groupId>
                <artifactId>spring-ai-alibaba-bom</artifactId>
                <version>${spring-ai-alibaba.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <!-- Spring AI -->
            <dependency>
                <groupId>org.springframework.ai</groupId>
                <artifactId>spring-ai-bom</artifactId>
                <version>${spring-ai.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <version>${spring-boot.version}</version>
            </plugin>
        </plugins>
    </build>

</project>

2. MCP服务

2.1 MCP服务pom文件

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>com.saa</groupId>
        <artifactId>saa-parent</artifactId>
        <version>0.0.1-SNAPSHOT</version>
    </parent>
    <groupId>com.saa</groupId>
    <artifactId>saa-localMcpServer</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>saa-localMcpServer</name>
    <description>saa-localMcpServer</description>
    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <maven.compiler.source>17</maven.compiler.source>
        <maven.compiler.target>17</maven.compiler.target>
    </properties>

    <dependencies>
        <!--
            spring-ai-starter-mcp-server-webflux不能和<artifactId>spring-boot-starter-web</artifactId>依赖并存，
            否则会使用tomcat启动,而不是netty启动，从而导致mcpserver启动失败，但程序运行是正常的，mcp客户端连接不上。
        -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter</artifactId>
        </dependency>
        <!--mcp-server-webflux-->
        <dependency>
            <groupId>org.springframework.ai</groupId>
            <artifactId>spring-ai-starter-mcp-server-webflux</artifactId>
        </dependency>
        <!--lombok-->
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.18.38</version>
        </dependency>
        <!--hutool-->
        <dependency>
            <groupId>cn.hutool</groupId>
            <artifactId>hutool-all</artifactId>
            <version>5.8.22</version>
        </dependency>
        <!--spring-boot-starter-test-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>


    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>3.8.1</version>
                <configuration>
                    <source>17</source>
                    <target>17</target>
                    <encoding>UTF-8</encoding>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <version>${spring-boot.version}</version>
            </plugin>
        </plugins>
    </build>
</project>

2.2 MCP服务properties配置文件

server.port=8092

server.servlet.encoding.charset=utf-8
server.servlet.encoding.enabled=true
server.servlet.encoding.force=true
spring.application.name=saa-local-mcp-server

## mcp-server config
spring.ai.mcp.server.type=async
spring.ai,mcp.server.name=customer-mcp-server
spring.ai.mcp,server.version=1.0.0

2.3 MCP服务配置类

package com.saa.mcp.server.config;

import com.saa.mcp.server.service.WeatherService;
import org.springframework.ai.tool.ToolCallbackProvider;
import org.springframework.ai.tool.method.MethodToolCallbackProvider;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

@Configuration
public class McpServerConfig {

    @Bean
    public ToolCallbackProvider weatherTools(WeatherService weatherService) {
        return MethodToolCallbackProvider.builder()
                .toolObjects(weatherService)
                .build();
    }
}

2.4 MCP服务业务代码（天气查询，这里只是模拟）

package com.saa.mcp.server.service;

import org.springframework.ai.tool.annotation.Tool;
import org.springframework.stereotype.Service;

import java.util.Map;

@Service
public class WeatherService {
    @Tool(description = "根据城市名称获取天气预报")
    public String getWeatherByCity(String city) {
        Map<String, String> map = Map.of(
                "武汉", "降雨频繁，其中今天和后天雨势较强，部分地区有暴雨并伴强对流天气，需注意",
                "上海", "多云,15℃~27℃,南风3级，当前温度27℃。",
                "广州", "多云40天，阴16天，雨30天，晴3天"
        );
        return map.getOrDefault(city, "未查询到对应城市！");
    }
}

3. MCP客户端

3.1 MCP客户端pom文件

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<parent>
		<groupId>com.saa</groupId>
		<artifactId>saa-parent</artifactId>
		<version>0.0.1-SNAPSHOT</version>
	</parent>
	<groupId>com.saa</groupId>
	<artifactId>saa-localMcpClient</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<name>saa-localMcpClient</name>
	<description>saa-localMcpClient</description>
	<properties>
		<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
		<maven.compiler.source>17</maven.compiler.source>
		<maven.compiler.target>17</maven.compiler.target>
	</properties>
	<dependencies>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>

		<dependency>
			<groupId>com.alibaba.cloud.ai</groupId>
			<artifactId>spring-ai-alibaba-starter-dashscope</artifactId>
		</dependency>

		<dependency>
			<groupId>org.springframework.ai</groupId>
			<artifactId>spring-ai-starter-mcp-client</artifactId>
		</dependency>

		<dependency>
			<groupId>org.projectlombok</groupId>
			<artifactId>lombok</artifactId>
			<version>1.18.34</version>
			<optional>true</optional>
		</dependency>

		<dependency>
			<groupId>cn.hutool</groupId>
			<artifactId>hutool-all</artifactId>
			<version>5.8.16</version>
		</dependency>
		<dependency>
			<groupId>junit</groupId>
			<artifactId>junit</artifactId>
			<scope>test</scope>
		</dependency>

		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-test</artifactId>
		</dependency>
	</dependencies>


	<build>
		<plugins>
			<plugin>
				<groupId>org.apache.maven.plugins</groupId>
				<artifactId>maven-compiler-plugin</artifactId>
				<version>3.8.1</version>
				<configuration>
					<source>17</source>
					<target>17</target>
					<encoding>UTF-8</encoding>
				</configuration>
			</plugin>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
				<version>${spring-boot.version}</version>
			</plugin>
		</plugins>
	</build>

</project>

3.2 MCP客户端properties配置文件

server.port=8093

server.servlet.encoding.charset=utf-8
server.servlet.encoding.enabled=true
server.servlet.encoding.force=true
spring.application.name=saa-local-mcp-client

spring.ai.dashscope.api-key=sk-09c7b571687b46d5a2e25a03fbdd2fd1

## mcp-server config
spring.ai.mcp.client.type=async
spring.ai.mcp.client.request-timeout=60s
spring.ai.mcp.client.toolcallback.enabled=true
spring.ai.mcp.client.sse.connections.mcp-server1.url=http://localhost:8092

3.3 MCP客户端配置类

package com.saa.mcp.client.config;

import org.springframework.ai.chat.client.ChatClient;
import org.springframework.ai.chat.model.ChatModel;
import org.springframework.ai.tool.ToolCallbackProvider;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

@Configuration
public class SaaLLMConfig {
    @Bean
    public ChatClient chatClient(ChatModel chatModel, ToolCallbackProvider tools) {
        return ChatClient.builder(chatModel)
                .defaultToolCallbacks(tools.getToolCallbacks())
                .build();
    }
}

3.4 MCP客户端控制器

package com.saa.mcp.client.controller;

import jakarta.annotation.Resource;
import org.springframework.ai.chat.client.ChatClient;
import org.springframework.ai.chat.model.ChatModel;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;
import reactor.core.publisher.Flux;

@RestController
public class McpClientController {
    @Resource
    private ChatClient chatClient;

    @Resource
    private ChatModel chatModel;

    @GetMapping("/mcpclient/chat")
    public Flux<String> chat(@RequestParam(name = "msg", defaultValue = "武汉") String msg) {
        System.out.println("调用本地MCP服务");
        return chatClient.prompt(msg).stream().content();
    }

    @RequestMapping("/mcpclient/chat2")
    public Flux<String> chat2(@RequestParam(name = "msg", defaultValue = "武汉") String msg) {
        System.out.println("未调用本地MCP服务");
        return chatModel.stream(msg);
    }
}

三、测试

1.分别启动服务端和客户端项目

2.通过客户端接口查询武汉天气

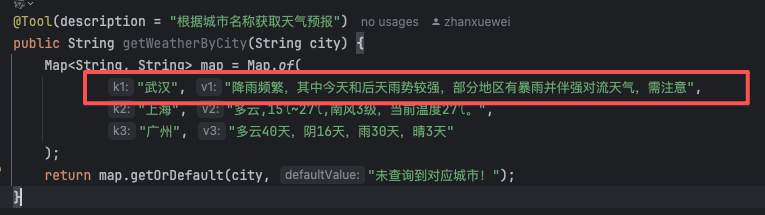

可以看到正确返回我们在服务端中模拟的数据：

3.通过客户端接口查询北京天气

可以看到也是正确返回

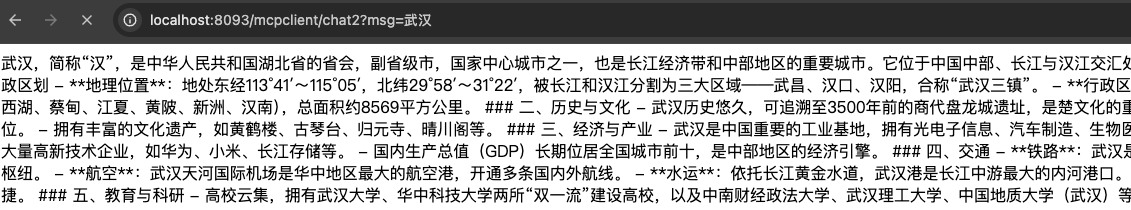

4.通过客户端接口2查询武汉天气

可以看到未走MCP server。
